Kiln Overview:

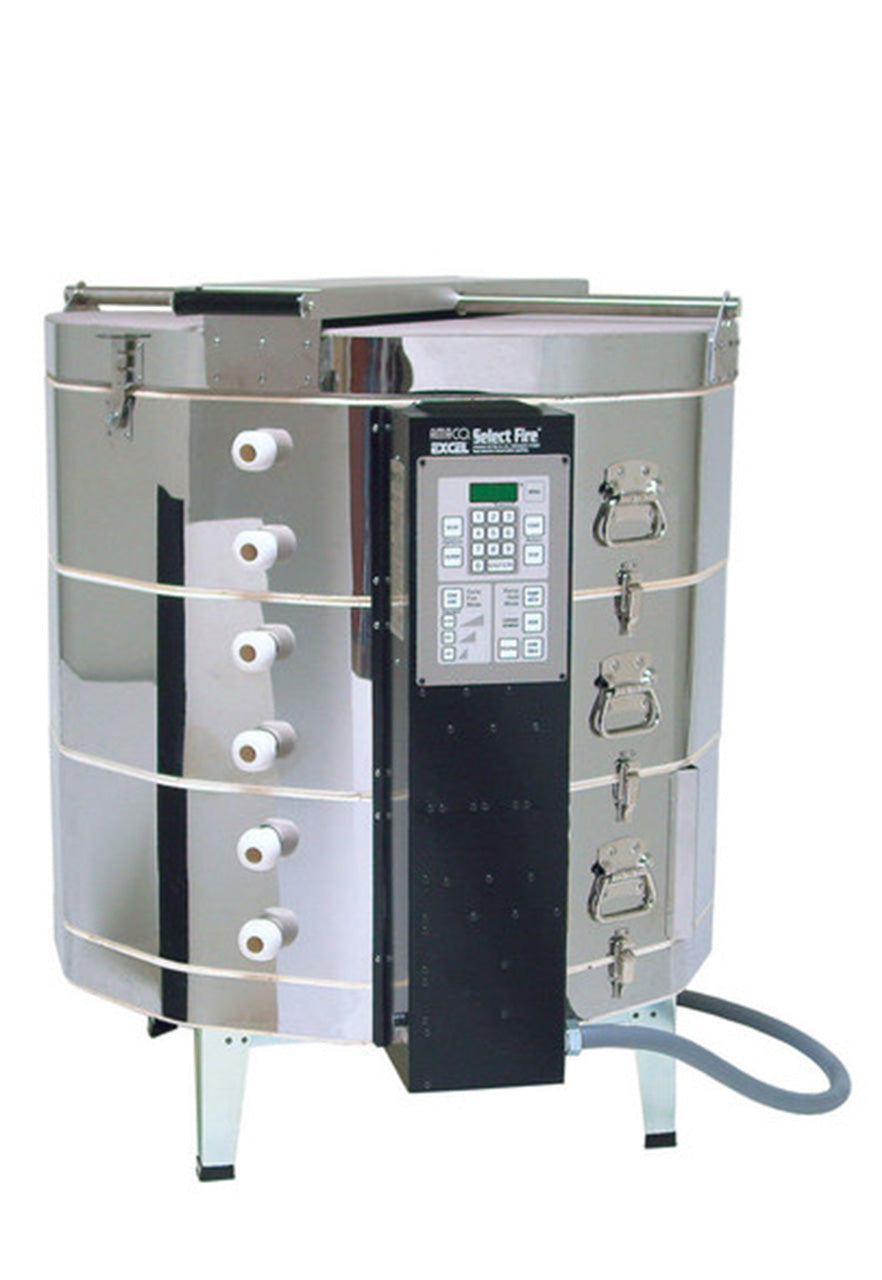

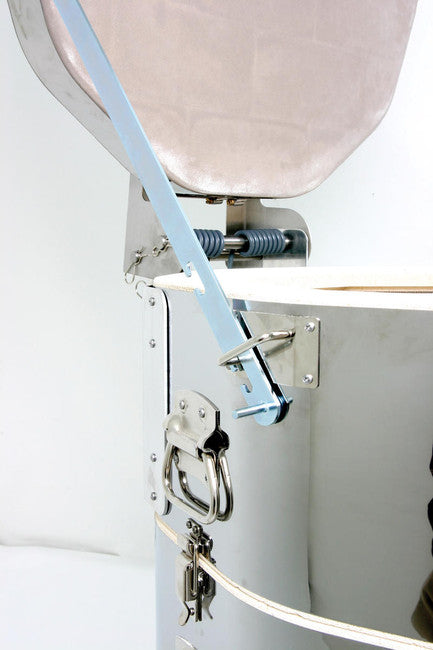

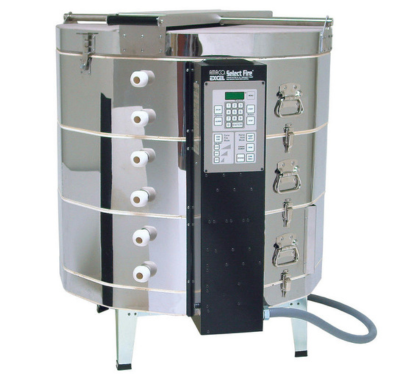

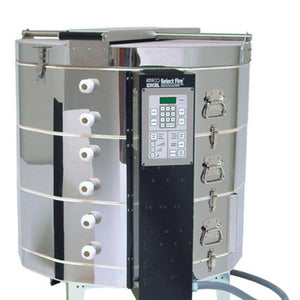

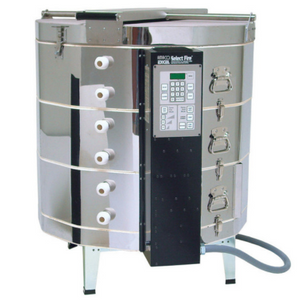

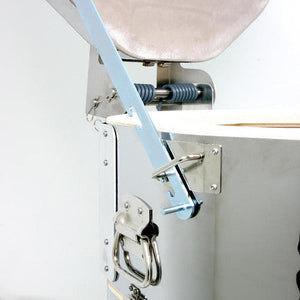

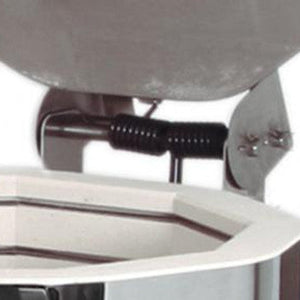

The EX-1099SF is built for serious studio use, with a spacious 28" diameter and 27" deep firing chamber (9.92 cu ft) that easily handles larger or taller pieces. It fires to Cone 10 (236°F) and features 3" firebrick for excellent insulation. The EZ-Lift™ spring-loaded hinge makes lid operation smooth and effortless, while the Select Fire™ computer control offers accurate, user-friendly firing. With 6 Kanthal A-I elements and a 7-foot direct wire power card, this klin delivers reliable, high-performance results every time.
Kiln Specifications:
|
Model |
EX-1099 |
|
Brand |
AMACO |
|
Volume |
9.92 cu.ft (280.9 liters) |
|
MaxTemp (°F/°C) |
(Cone 10)2381°F, 1305°C |
|
Kilowatts |
14 kW |
|
Phase |
230v - Single Phase |
|
Fuse Size |
60 Amps |
|
In-Dimension |
26" dia x 27" deep |
|
Out-Dimension |
38"W x 33"D x 43"H |
|
Brick Size (Wall) |
3" |
|
Shipping weight |
210 kg |
NOTE: Width dimension includes control box and height includes the stand (8’) on all EXCE18 klins.
Klin should be vented to the outside using the AMACO® Master Klinvent and up to 60 feet of 4” diameter duct material-galvanized furnace ducting, flexible aluminum ducting or PVC (maximum four 90° turns).
Klin must be 18” from any wall. Do not place kiln on flammable surfaces or near flammable materials.
